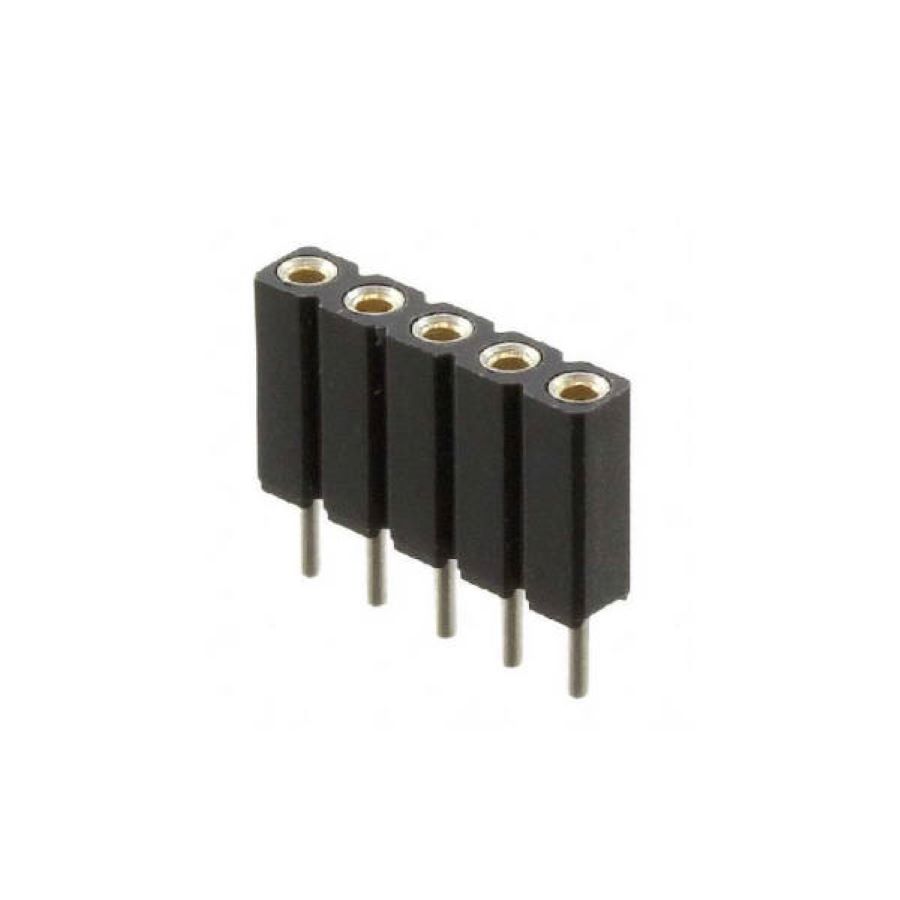

801-87-005-10-001101
Manufacturer:
Preci Dip
Mfr.Part #:
801-87-005-10-001101
Datasheet:
Description:
Headers and Wire Housings Through Hole Socket Number of Positions:5 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Width | 2.54 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Voltage Rating | 150 V |
| Depth | 2.54 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Brass, Copper |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Max Voltage Rating (DC) | 150 V |
| Orientation | Straight |
| Color | Black |
| Number of Contacts | 5 |
| Connector Type | Socket |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Polychlorinated |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Housing Color | Black |
| Termination Post Length | 3 mm |
Stock: 2496
Distributors
pcbx
pcbxUnit Price$0.43773
Ext.Price$0.43773
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.43773 | $0.43773 |
| 10 | $0.37360 | $3.73600 |
| 25 | $0.35376 | $8.84400 |
| 50 | $0.33497 | $16.74850 |
| 100 | $0.31718 | $31.71800 |
| 300 | $0.29959 | $89.87700 |
| 500 | $0.28298 | $141.49000 |
| 1000 | $0.22057 | $220.57000 |
